Deploying a Java Application

Updated by Chris Sterling on Jun 2, 2015

Audience

Application developers

Overview

AppFog includes the Cloud Foundry Java buildpack by default. This enables the deployment of Java applications using many JVM-based languages and frameworks. To learn more about the extent of this support, please read more details on the Cloud Foundry Java buildpack README.

This article is going to focus on deploying a Cloud Foundry sample application called Spring Music. This application is based on Spring Framework, a JVM-based application framework. Gradle is used for building the deployment artifact, a WAR file.

Build Deployment Artifact

To deploy the Spring Music application you must first download the code. One way to download the code is using Git. There are many ways to install Git so please check for the appropriate client on the Git downloads page. Once you have a Git client installed, you can clone the Spring Music repository with the following command:

$ cd [directory to clone Spring Music code into]
$ git clone https://github.com/cloudfoundry-samples/spring-music.git

Once the code is cloned into a local directory you can go into the spring-music directory and build the WAR file to be used as the deployment artifact into AppFog:

$ cd spring-music
$ ./gradlew assemble

This may take some time since it has to download many dependencies before executing the build steps. Once it has completed there should be a WAR file created:

$ ls -l build/libs/spring-music.war

Deploy Java Application

Now that we have a deployment artifact we can push the application to AppFog using the Cloud Foundry CLI. The Spring Music application includes a manifest.yml file that defines metadata to tell AppFog how to deploy the application. Here is the manifest.yml contents:

---
applications:
- name: spring-music
  memory: 512M
  instances: 1
  host: spring-music-${random-word}
  path: build/libs/spring-music.war

This manifest.yml file tells AppFog that:

  • The name of the application is spring-music
  • Each application instance needs 512 MB of memory reserved to run
  • Launch a single instance
  • The URL route should be spring-music- with a random word added to the end. This is a less known feature that attempts to give each push of a Spring Music application a unique route.
  • The path to the deployment artifact

To deploy the Spring Music application run the following:

$ cf push

The output may end with console logs that look something like the following:

...
0 of 1 instances running, 1 down
0 of 1 instances running, 1 starting
1 of 1 instances running

App started


OK

App spring-music was started using this command `JAVA_HOME=$PWD/.java-buildpack/open_jdk_jre JAVA_OPTS="-Djava.io.tmpdir=$TMPDIR -XX:OnOutOfMemoryError=$PWD/.java-buildpack/open_jdk_jre/bin/killjava.sh -Xmx382293K -Xms382293K -XX:MaxMetaspaceSize=64M -XX:MetaspaceSize=64M -Xss995K -Daccess.logging.enabled=false -Dhttp.port=$PORT" $PWD/.java-buildpack/tomcat/bin/catalina.sh run`

Showing health and status for app spring-music in org DEMO / space Dev as demo_user...
OK

requested state: started
instances: 1/1
usage: 512M x 1 instances
urls: spring-music-inconstant-ivyberry.useast.appfog.ctl.io
last uploaded: Wed Jun 3 01:41:07 UTC 2015

     state     since                    cpu    memory           disk           details
#0   running   2015-06-02 06:42:43 PM   0.0%   467.8M of 512M   150.5M of 1G

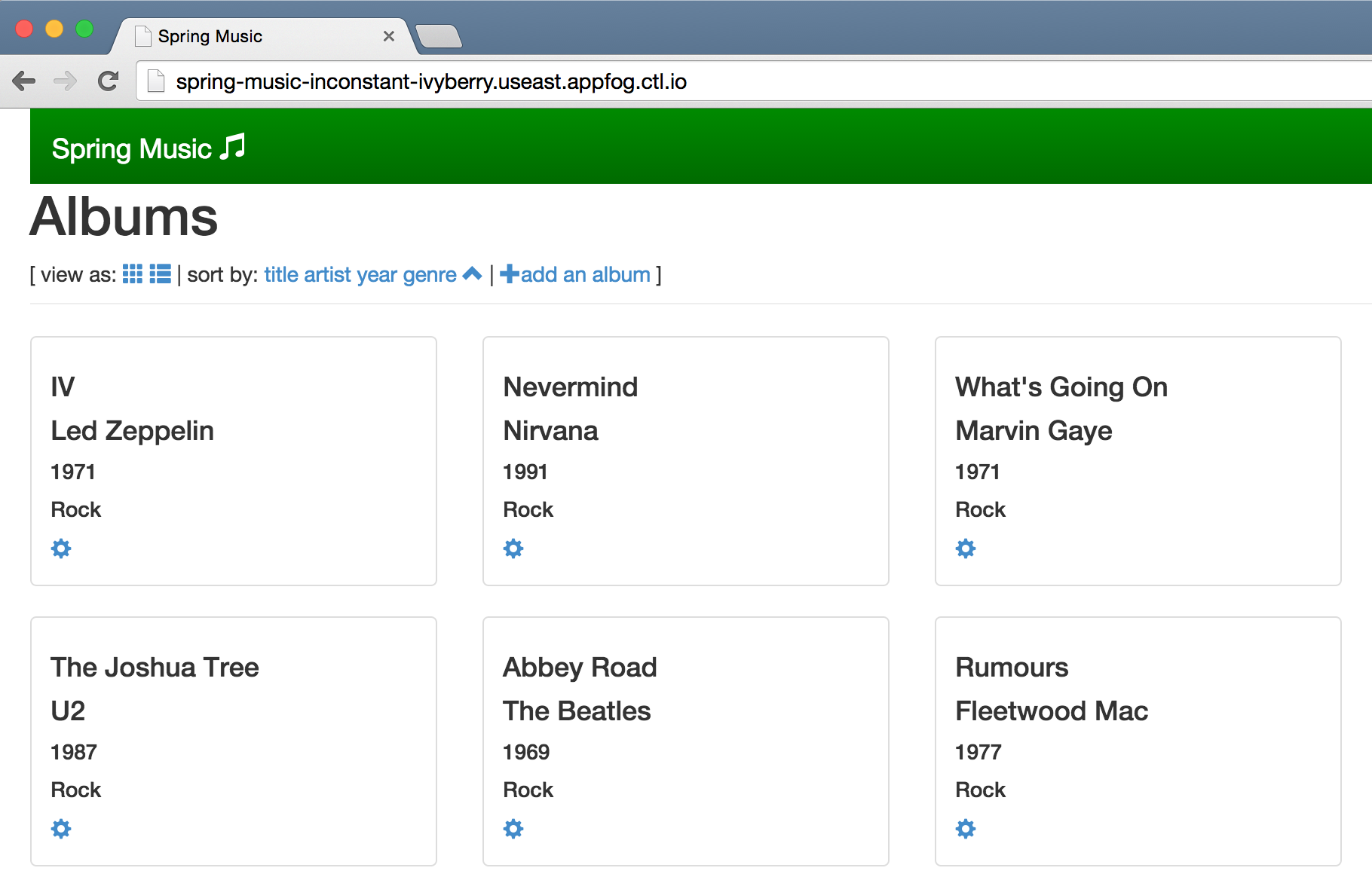

Once the application has successfully started then you can go to the given URL route provided as the value for urls in the console log. The example URL route above is spring-music-inconstant-ivyberry.useast.appfog.ctl.io. Take this URL and go to a browser to see the running application.
