ITSM Integrations

Updated by Guillermo Sanchez on Aug 17, 2018
Article Code: kb/1153

ITSM Integrations

In this article:

Overview

In the organization settings page there is a section to configure ITSM (IT Service Management) integrations, where you can enable and configure the ServiceNow integration. ServiceNow can be configured as configuration management database (CMDB), so whenever an instance is deployed, it will be registered into ServiceNow CMDB, and whenever is terminated it will be removed from ServiceNow CMDB as well. This allows you to have a synchronized view of your CAM deployments into ServiceNow CMDB module.

Audience

All users with Cloud Application Manager organization administrator access.

Prerequisites

  • Access to Cloud Application Manager, Management site.

  • The user must be an Administrator of the organization in Cloud Application Manager.

  • The user should be at the organization level scope to access the Settings option in the left side menu, or through the pencil button in the organization element in the context switcher.

Configuration Steps

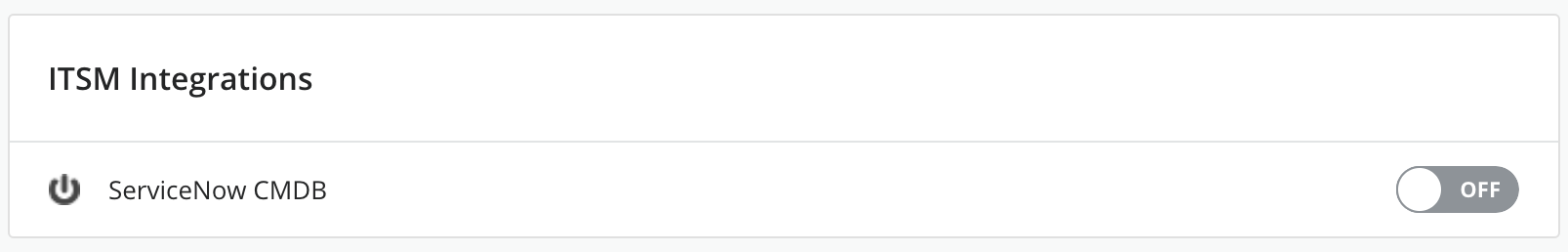

  1. Navigate to the ITSM Integrations section in the Organization settings page and enable ServiceNow CMDB toggle:
    ServiceNow CMDB toggle

  2. Click on the Add ServiceNow button:
    ServiceNow CMDB add

  3. Fill in the form with the required fields:
    ServiceNow CMDB add

    Once you specify the ServiceNow host, you should copy the Redirect URL and click on the Create an application registry for CAM link which will open the ServiceNow server configuration in a new tab or window where you will configure the ServiceNow application registration for Cloud Application Manager (CAM) and fill in the following:

    • Click on the lock next to Redirect URL to unlock the field and paste there the value you copied from CAM form earlier.
    • Specify a meaningfull name for your ServiceNow application registration for CAM
    • Copy the Client ID that has been automatically generated and go back to CAM to paste it in the corresponding field
    • Specify the same Client Secret in both configuration pages (CAM and ServiceNow).
    • In ServiceNow application registration page you can change the Refresh Token Lifespan value to "-1" to define that it will never expire.
    • Going back to Cloud Application Manager New ServiceNow Configuration form, click on Save
      ServiceNow CMDB save
  4. Once you have saved your configuration, you need to Authorize access for Cloud Application Manager to be able to talk to your ServiceNow instance by clicking the Authorize button:
    ServiceNow CMDB authorize
    When clicking on the Authorize button a ServiceNow screen will appear where you can Allow Cloud Application Manager to connect to your ServiceNow account.

  5. Once you have authorize the connection, you will see Authorized in your configuration, and you will have the option to Reauthorize in case you need to do so, or when your token expires:
    ServiceNow CMDB authorized

The Activity audit log will show a record whenever the ITSM ServiceNow CMDB integration has been switched on or off:

ServiceNow CMDB activity log

Behavior

Once ServiceNow CMDB integration has been configured, the following behavior will occur when deploying any instance through Cloud Application Manager.

When deploying a new instance

When a new instance is deployed in Cloud Application Manager, the following fields will be sent to ServiceNow CMDB in one new cmdb_ci entity:

  • “name”: name of the instance in CAM
  • short_description”: type of service
  • “attributes”: provider type, provider managed_os, provider description, provider name and service type.
  • “comments”: Instance name and instance Id
  • “correlation_id”: Instance Id

The instance activity log will show that the instance deployment was registered into ServiceNow CMDB:

ServiceNow CMDB registered

When terminating an instance

When an instance is terminated, its corresponding ServiceNow entity is deleted from ServiceNow CMDB.

The instance activity log will show that the instance termination has been informed to ServiceNow CMDB for it to be unregistered:

ServiceNow CMDB unregistered
