Using AWS

Using AWS

Deploy to AWS from Cloud Application Manager as follows.

We orchestrate with AWS APIs in the backend to provision, install, and manage the lifecycle of your workloads based on the box configuration.

In this article:

  • Connect your AWS account in Cloud Application Manager
  • Add custom AMIs in Cloud Application Manager
  • Deploy to Your AWS Account
  • Auto-Discover Instances

Connect Your AWS Account in Cloud Application Manager

Before you deploy in AWS, you need to connect your AWS account in Cloud Application Manager. Watch this video for details.

Choosing the right policy

The AWS IAM Policy regulates what Cloud Application Manager is allowed to do and see from your account. Depending on your usage you might want to restrict more or less the operations allowed.

To be able to deploy AWS CloudFormation you will need to have the appropriated permissions in the policy, so you should give access to the services you are planning to use.

For example, if you are planning to deploy RDS and ElastiCache from CloudFormation templates, it useful to give the permissions for: rds:* and elasticache:*

Here is an example of a common policy that give access to some AWS services but not all:

{
"Version": "2012-10-17",
"Statement": [
{
    "Action": [
        "autoscaling:*",
        "cloudformation:*",
        "cloudwatch:DescribeAlarms",
        "dynamodb:*",
        "ec2:*",
        "ecs:ListClusters",
        "elasticache:*",
        "elasticloadbalancing:*",
        "iam:CreateUser",
        "iam:DeleteUser",
        "iam:ListAccessKeys",
        "iam:ListUserPolicies",
        "iam:ListServerCertificates",
        "iam:PutUserPolicy",
        "iam:GetUser",
        "iam:CreateAccessKey",
        "iam:DeleteUserPolicy",
        "iam:DeleteAccessKey",
        "iam:PassRole",
        "iam:ListRoles",
        "iam:ListInstanceProfilesForRole",
        "rds:*",
        "route53:*",
        "route53domains:*",
        "s3:*",
        "sns:*",
        "sts:AssumeRole",
        "support:*"
    ],
    "Sid": "Stmt1378777340000",
    "Resource": [
        "*"
    ],
    "Effect": "Allow"
}
]
}

The full list of possible actions is described here.

If you are not planning to use CloudFormation template boxes and you want to use Script Boxes and Deployment Policy Boxes, here is the minimal policy required for them to work:

{
"Version": "2012-10-17",
"Statement": [
{
    "Action": [
        "autoscaling:CreateAutoScalingGroup",
        "autoscaling:CreateLaunchConfiguration",
        "autoscaling:DeleteAutoScalingGroup",
        "autoscaling:DeleteLaunchConfiguration",
        "autoscaling:DescribeScalingActivities",
        "autoscaling:DescribeAutoScalingGroups",
        "autoscaling:DescribeAutoScalingInstances",
        "autoscaling:DescribeLaunchConfigurations",
        "autoscaling:ResumeProcesses",
        "autoscaling:SuspendProcesses",
        "autoscaling:TerminateInstanceInAutoScalingGroup",
        "autoscaling:UpdateAutoScalingGroup",
        "cloudformation:CreateStack",
        "cloudformation:DeleteStack",
        "cloudformation:DescribeStackEvents",
        "cloudformation:DescribeStackResource",
        "cloudformation:DescribeStackResources",
        "cloudformation:DescribeStacks",
        "cloudformation:GetTemplate",
        "cloudformation:ListStacks",
        "cloudformation:ListStackResources",
        "cloudformation:UpdateStack",
        "cloudformation:ValidateTemplate",
        "cloudwatch:DescribeAlarms",
        "dynamodb:CreateTable",
        "dynamodb:DeleteTable",
        "dynamodb:DescribeTable",
        "dynamodb:ListTables",
        "ec2:AssociateAddress",
        "ec2:AttachVolume",
        "ec2:AllocateAddress",
        "ec2:AuthorizeSecurityGroupEgress",
        "ec2:AuthorizeSecurityGroupIngress",
        "ec2:CopyImage",
        "ec2:CreateImage",
        "ec2:CreateSecurityGroup",
        "ec2:CreateSnapshot",
        "ec2:CreateSubnet",
        "ec2:CreateTags",
        "ec2:CreateVolume",
        "ec2:DeleteSecurityGroup",
        "ec2:DeleteSubnet",
        "ec2:DeleteTags",
        "ec2:DeleteVolume",
        "ec2:DescribeAccountAttributes",
        "ec2:DescribeAddresses",
        "ec2:DescribeAvailabilityZones",
        "ec2:DescribeImageAttribute",
        "ec2:DescribeImages",
        "ec2:DescribeInstanceAttribute",
        "ec2:DescribeInstanceStatus",
        "ec2:DescribeInstances",
        "ec2:DescribeKeyPairs",
        "ec2:DescribePlacementGroups",
        "ec2:DescribeRegions",
        "ec2:DescribeSecurityGroups",
        "ec2:DescribeSubnets",
        "ec2:DescribeTags",
        "ec2:DescribeVolumeAttribute",
        "ec2:DescribeVolumeStatus",
        "ec2:DescribeVolumes",
        "ec2:DescribeVpcAttribute",
        "ec2:DescribeVpcs",
        "ec2:DescribeVpnConnections",
        "ec2:DetachVolume",
        "ec2:RebootInstances",
        "ec2:RegisterImage",
        "ec2:ReleaseAddress",
        "ec2:RevokeSecurityGroupEgress",
        "ec2:RevokeSecurityGroupIngress",
        "ec2:RunInstances",
        "ec2:StartInstances",
        "ec2:StopInstances",
        "ec2:TerminateInstances",
        "ecs:ListClusters",
        "elasticache:*",
        "elasticloadbalancing:CreateLoadBalancer",
        "elasticloadbalancing:CreateLoadBalancerPolicy",
        "elasticloadbalancing:DeleteLoadBalancer",
        "elasticloadbalancing:DeleteLoadBalancerPolicy",
        "elasticloadbalancing:DeregisterInstancesFromLoadBalancer",
        "elasticloadbalancing:DescribeInstanceHealth",
        "elasticloadbalancing:DescribeLoadBalancerPolicies",
        "elasticloadbalancing:DescribeLoadBalancers",
        "elasticloadbalancing:RegisterInstancesWithLoadBalancer",
        "elasticloadbalancing:SetLoadBalancerPoliciesOfListener",
        "elasticloadbalancing:ModifyLoadBalancerAttributes",
        "elasticloadbalancing:ConfigureHealthCheck",
        "iam:CreateUser",
        "iam:DeleteUser",
        "iam:ListAccessKeys",
        "iam:ListUserPolicies",
        "iam:ListServerCertificates",
        "iam:PutUserPolicy",
        "iam:GetUser",
        "iam:CreateAccessKey",
        "iam:DeleteUserPolicy",
        "iam:DeleteAccessKey",
        "iam:PassRole",
        "iam:ListRoles",
        "iam:ListInstanceProfilesForRole",
        "rds:AuthorizeDBSecurityGroupIngress",
        "rds:AddTagsToResource",
        "rds:CreateDBInstance",
        "rds:CreateDBSecurityGroup",
        "rds:CreateDBSnapshot",
        "rds:DeleteDBInstance",
        "rds:DeleteDBSecurityGroup",
        "rds:DeleteDBSnapshot",
        "rds:DescribeDBInstances",
        "rds:DescribeDBParameterGroups",
        "rds:DescribeDBParameters",
        "rds:DescribeDBSecurityGroups",
        "rds:DescribeDBSnapshots",
        "rds:DescribeDBEngineVersions",
        "rds:DescribeDBSubnetGroups",
        "rds:DescribeOptionGroups",
        "rds:ModifyDBInstance",
        "rds:ModifyDBSubnetGroup",
        "rds:RebootDBInstance",
        "rds:RemoveTagsFromResource",
        "rds:RestoreDBInstanceFromDBSnapshot",
        "rds:RevokeDBSecurityGroupIngress",
        "s3:CreateBucket",
        "s3:DeleteBucket",
        "s3:DeleteBucketPolicy",
        "s3:GetBucketAcl",
        "s3:GetBucketCORS",
        "s3:GetBucketLocation",
        "s3:ListAllMyBuckets",
        "s3:ListBucket",
        "s3:PutBucketAcl",
        "s3:PutBucketCORS",
        "s3:PutBucketPolicy",
        "s3:PutBucketTagging",
        "sts:AssumeRole",
        "support:*"
    ],
    "Sid": "Stmt1378777340000",
    "Resource": [
        "*"
    ],
    "Effect": "Allow"
}
]
}

Create an IAM Role with the Policy chosen

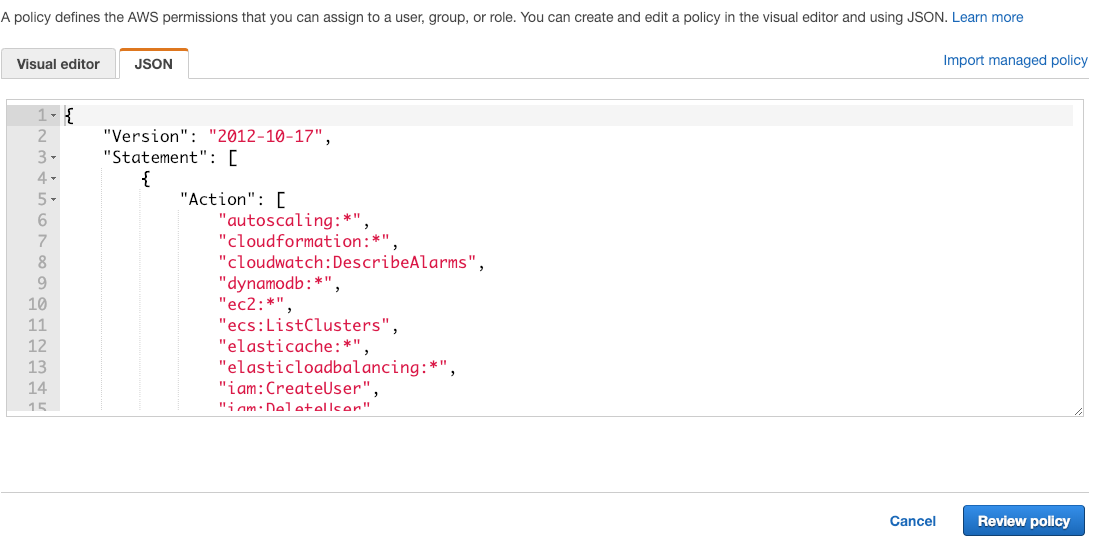

  1. Create a custom AWS policy and copy, paste the permissions chosen before and name it CAM_Policy. You can edit these permissions before if some deployment fails because of the lack of permissions.

  2. Create an IAM role with the role type of Role for cross-account access, and the Specific role is Provide access between you AWS account and a 3rd party AWS account. Then, add this information and attach the policy.

    • Account ID: 540339316802
    • External ID: elasticbox
    • Require MFA: Leave unselected
  3. Register the IAM role in Cloud Application Manager.

    • Important: If you use Cloud Application Manager as an appliance, connect to your AWS account using the secret and key credentials.

Add Custom AMIs in Cloud Application Manager

By default, Cloud Application Manager makes the latest AWS Linux and Windows AMIs along with any custom AMIs available in your AWS account. You can add others by clicking New and entering the AMI number.


Note: For this to work you may have go to the AWS marketplace and accept the license agreement for that AMI. Although most AMIs come pre-installed with cloud-init, some may not, in which case you must install it. Cloud Application Manager requires cloud-init to bootstrap the Cloud Application Manager agent.

Deploy to Your AWS Account

When you deploy a box, we show deployment policies whose claims match the required tags of the box.

RDS, DynamoDB, and Memcached are CloudFormation boxes. To deploy to an RDS service, such as MySQL, MS SQL, Oracle, or PostgresSQL, configure its CloudFormation box.

  • EC2 (Linux and Windows)
  • AWS ECS
  • AWS CloudFormation

Note: If your AWS account has new AMIs, key pairs, security groups, and the like, you must sync with the AWS account in Cloud Application Manager to pick up all the changes.

EC2 (Linux and Windows)

To deploy workloads to an EC2 instance, create a deployment policy for an AWS account or use the one your admin shared with you.


Deployment

Deployment Option Description
Provider This shows the name or GUID of the AWS provider account in Cloud Application Manager. If you don’t have access to the provider account, you see the GUID.

Resource

Deployment Option Description
Region Select the region where you want to create the instance, for example, us-east-1.
AMI Select a public, private, or shared AWS or an AWS community based AMI available by location.
Instance Type Select an instance type that’s pre-determined by the size of compute, memory, and network resources from the list that AWS provides, for example, db.t1.micro.
Keypairs Select a key pair you created in AWS to connect to the instance or select None if you don’t want SSH access to the instance.
IAM Role Select one to assign an existing IAM role to the instance. This allows the instance to make and accept API requests securely using the permissions defined by the role. To let Cloud Application Manager view and pass the existing role to the instance, update the Cloud Application Manager IAM role policy with the listed permissions. To learn more about IAM roles, see the AWS docs.
Instances Select the number of instances to launch.

Network

Deployment Option Description
Cloud Select to deploy an instance in EC2 or in a Virtual Private Cloud (VPC) that you created in AWS.
Availability Zone Select an availability zone, such as us-east-1a if deploying in EC2 or select a subnet if deploying in your VPC.
Placement Group Select an existing placement group from AWS to cluster instances for high network performance. Some instances can get 10 Gbps connectivity depending on their instance type. To learn more, see the AWS docs. To let Cloud Application Manager view and direct the instance to the placement group, update the Cloud Application Manager IAM role policy with the listed permissions.
Security Groups Select security groups to route traffic to the instance. If you didn’t create a security group in AWS for EC2 or a VPC, select Automatic for Cloud Application Manager to create one on your behalf.
Elastic IP When launching to AWS, select Elastic IP to allocate a fresh static IP address from the EC2 or VPC pool and associate it to the instance depending on whether you’re deploying to EC2 classic or your VPC. If you’re using dynamic DNS to assign an IP address in EC2 or want to allow internet traffic to communicate with your instance in a non default VPC, then use Elastic IPs to guarantee public access. Note: You can’t autoscale the instance when you choose an Elastic IP for it. For more information, see the AWS help.

Elastic Block Store Instance types come with a default root device volume. To get storage on top of the default volume, add EBS volumes under Elastic Block Store.


Select from General Purpose (SSD), Provisioned IOPS (SSD) or Magnetic volume types. Optionally, EBS-optimize them to dedicate I/O throughput from the instance to the volumes. Check EBS Optimized for any of the supported instance types: m3.xlarge, m3.2xlarge, c3.xlarge, c3.2xlarge, c3.4xlarge, g2.2xlarge, r3.xlarge, r3.2xlarge.

Note: Some instance types are EBS-optimized by default, so you’ll see the option automatically selected for c4.large, c4.xlarge, c4.2xlarge, c4.4xlarge, c4.8xlarge.

Follow these steps to add more volumes.

Steps

Configure volumes. Select a type, device mapping, size, and IOPS where available.

Type Usage Size IOPS
General Purpose (SSD) System boot volumes, virtual desktops, small to medium size databases, dev and test environments. 1 GiB to 1024 GiB Cannot set value as its default. Can burst to 3000 IOPS with a base performance of 3 IOPS/GiB.
Provisioned IOPS (SSD) Critical business applications and large databases like MongoDB, Microsoft SQL Server, MySQL, PostgreSQL, and Oracle. 10 GiB to 1024 GiB Set the IOPS as a ratio of the volume size. For example, to get 3000 IOPS, the volume must be sized at least 100 GiB. Volumes perform up to 4000 maximum IOPS.
Magnetic (standard) Workloads with lowest storage cost and infrequent data access. 1 GiB to 1024 GiB Cannot set value as it’s default. Volumes average 100 IOPS and can burst to hundreds of IOPS.

Add volumes. Click Add to register each volume in the instance deployment profile. When you save the profile and launch instances with additional volumes, we create and attach them to the instance. However, you still need to format the volumes before using them. Note: At this time, you cannot encrypt the volumes or take volume snapshots through Cloud Application Manager.

Auto Scaling

Turn on to allow AWS to automatically scale to the number of instances you specified (under Instances). Cloud Application Manager creates a launch configuration and an auto scaling group that lets AWS scale an instance up or down based on CPU usage. If the usage reaches the 80 percent threshold, AWS launches a new instance. The number of instances launched is limited to the maximum number specified under Instances.

Load Balancing

Load balancing evenly distributes load to your application instances hosted on EC2 or a VPC across all availability zones in a region. When you enable and configure it for an instance, Cloud Application Manager automatically sets up load balancing. To set up, add a new listener or select an existing one. Then specify the protocol and ports through which traffic flows from the client to the load balancer node (front-end) and from the load balancer to the instance (backend). To allow traffic over HTTPS, SSL, you must upload a certificate to AWS. The default settings require that your EC2 servers are active and accept requests via the port specified for the load balancing listener. Accepted ports are 25, 80, 443, and 1024 to 65535.


When deploying via AWS, we register the instance to the load balancer and automatically create a security group for the load balancer so that it can communicate with the instance through the protocols and ports you set in the deployment profile.

Note: Since you more frequently update or replace applications than load balancers, we recommend you reuse existing load balancers in production environments. This will help retain DNS settings that forward traffic to the instance.

AWS ECS

To deploy workloads to an ECS instances:

  • AWS ECS
  • Image Lifecycle
  • Deploy the Instance

Note: This documentation assumes that you have an ECS cluster already deployed in your AWS account. If you don’t have one, you can deploy a CloudFormation Box using this CloudFormation template as blueprint. After the instance is deployed, don’t forget to synchronize the provider in order to fetch the latest changes.

Deployment Policy

Create a new policy box of type “Amazon EC2 Container Service” or use the one your admin shared with you.

Deployment

Deployment Option Description
Provider This shows the name or GUID of the AWS provider account in Cloud Application Manager . If you don’t have access to the provider account, you see the GUID.

Resource

Deployment Option Description
Region Select the region where you want to create the instance, for example, us-east-1.
Cluster Select the cluster where you want to deploy you container.
CPU Units The number of cpu units to reserve for the container. A container instance has 1,024 cpu units for every CPU core.
Memory The number of MiB of memory to reserve for the container. If your container attempts to exceed the memory allocated here, the container is killed.
IAM Role Select one to assign an existing IAM role to the instance. This allows the instance to make and accept API requests securely using the permissions defined by the role. To let Cloud Application Manager view and pass the existing role to the instance, update the Cloud Application Manager IAM role policy with the listed permissions. To learn more about IAM roles, see the AWS docs.
Instances Select the number of instances to launch.

Network

Deployment Option Description
Load Balancing Select the load balancer to be used by the container.
Port Mappings Maps the ports between the container port and the host port.

Image Lifecycle

Build the Image

Use the ebcli to build the image.

Sintax

ebcli build ”<box ID>” [-t “<image name>”] [--image <image name>] [--boxes-path <boxes path>]

Parameters

Deployment Option Description
-t Name of the image to be build.
–image Name of the base image to be used. E.g. ubuntu:14.04 or Centos.
–boxes-path Path where the boxes are located.

Push the Image

Use the docker client to push the image to your favorite docker registry. If you have questions about this step, check out the official Docker documentation about images.

Syntax

docker push “<image name>”

Post the Image

Use the ebcli to post the image to your box

Syntax

ebcli post “<docker image>”

Deploy the Instance

Deploy the instance as you would do for a regular deployment, but instead, select the previously created deployment profile. The box will be deployed as a container within the ECS cluster selected in the Deployment Policy.

Shutdown and Terminate Instances in AWS

As soon as the state of an instance changes to shutdown or terminated, you stop incurring charges for that instance.

Shutdown Instance

When a shutdown operation is executed from Cloud Application Manager, the instance is stopped. AWS don't charge hourly usage for a stopped instance, or data transfer fees, but AWS do charge for the storage for any Amazon EBS volumes. Each time you start a stopped instance AWS charge a full instance hour, even if you make this transition multiple times within a single hour.

While the instance is stopped, you can treat its root volume like any other volume, and modify it.

You can modify the following attributes of an instance only when it is stopped:

  • Instance type
  • User data
  • Kernel
  • RAM disk

Terminate Instance

When you terminate an instance, the whole history of the instance is kept in Cloud Application Manager and you can use it as a reference for other instances, to copy the variables or to clone the instance. The instance in AWS is terminated.

After you terminate an instance, it remains visible in the AWS console for a short while, and then the entry is automatically deleted. After an instance is terminated, resources such as tags and volumes are gradually disassociated from the instance.

When an instance terminates, the data on any instance store and EBS volumes associated with that instance are deleted.

You can't connect to, restart or recover an instance after you've terminated it.

Before you terminate the instance, verify that you won't lose any data by checking that your Amazon EBS volumes won't be deleted on termination and that you've copied any data that you need from your instance store volumes to Amazon EBS or Amazon S3.

Contacting Cloud Application Manager Support

We’re sorry you’re having an issue in Cloud Application Manager. Please review the troubleshooting tips, or contact Cloud Application Manager support with details and screenshots where possible.

For issues related to API calls, send the request body along with details related to the issue.

In the case of a box error, share the box in the workspace that your organization and Cloud Application Manager can access and attach the logs.

  • Linux: SSH and locate the log at /var/log/elasticbox/elasticbox-agent.log
  • Windows: RDP into the instance to locate the log at ProgramDataElasticBoxLogselasticbox-agent.log
